Catalog

Search by vehicle

Category :

Transmission

Return

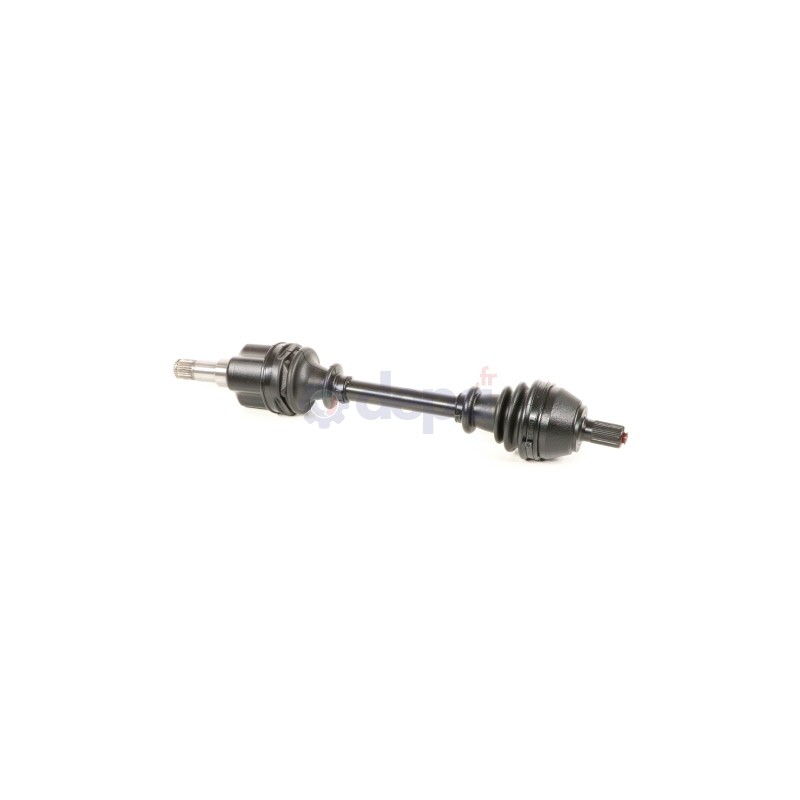

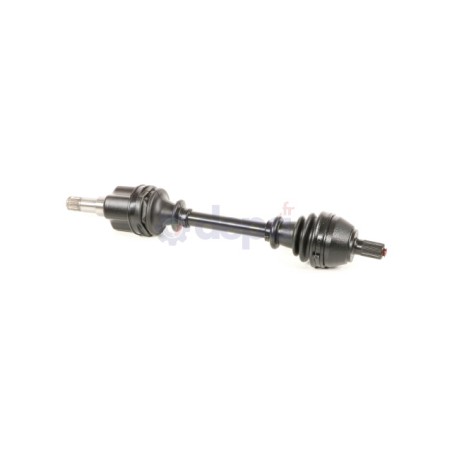

FORD FOCUS II LEFT-SIDE

Name: FORD FOCUS II LEFT-SIDE
Brand: Depa
SKU: 3253302
Price: 235.91 EUR
Availability: InStock

Ref : 3253302

Matching vehicles :

C30 - V50 - C70 II - S40 II

Family :TR

Compressed length : 530 mm

ABS on the vehicle : Yes

Nut type : Washer

COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Bearing roller diameter : 43 mm

Housing diameter : 73 mm

Beads thickness : 14 mm

Height : 22 mm

Length : 70 mm

Length of the gearbox output without seal seat : 67 mm

Number of splines : 26

Number of external splines : 26

Type of material : Neoprene

COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Diamètre des cannelures extérieures : 27.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 56 mm

Longueur : 88 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 26

Number of grooves : 1

Observations : Internal threading 8x125

Type de matière : NÉOPRÈNE

Type and position (snap ring/circlip) : Centered snap ring

Fixation	COTE ROUE	VI001
CV joint	COTE ROUE	JFO27
CV joint	COTE BOITE	CBMFO33GT
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6085
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

VOLVO : 36000181
VOLVO : 36000437
VOLVO : 36000546
