Catalog

Search by vehicle

Category :

Transmission

Return

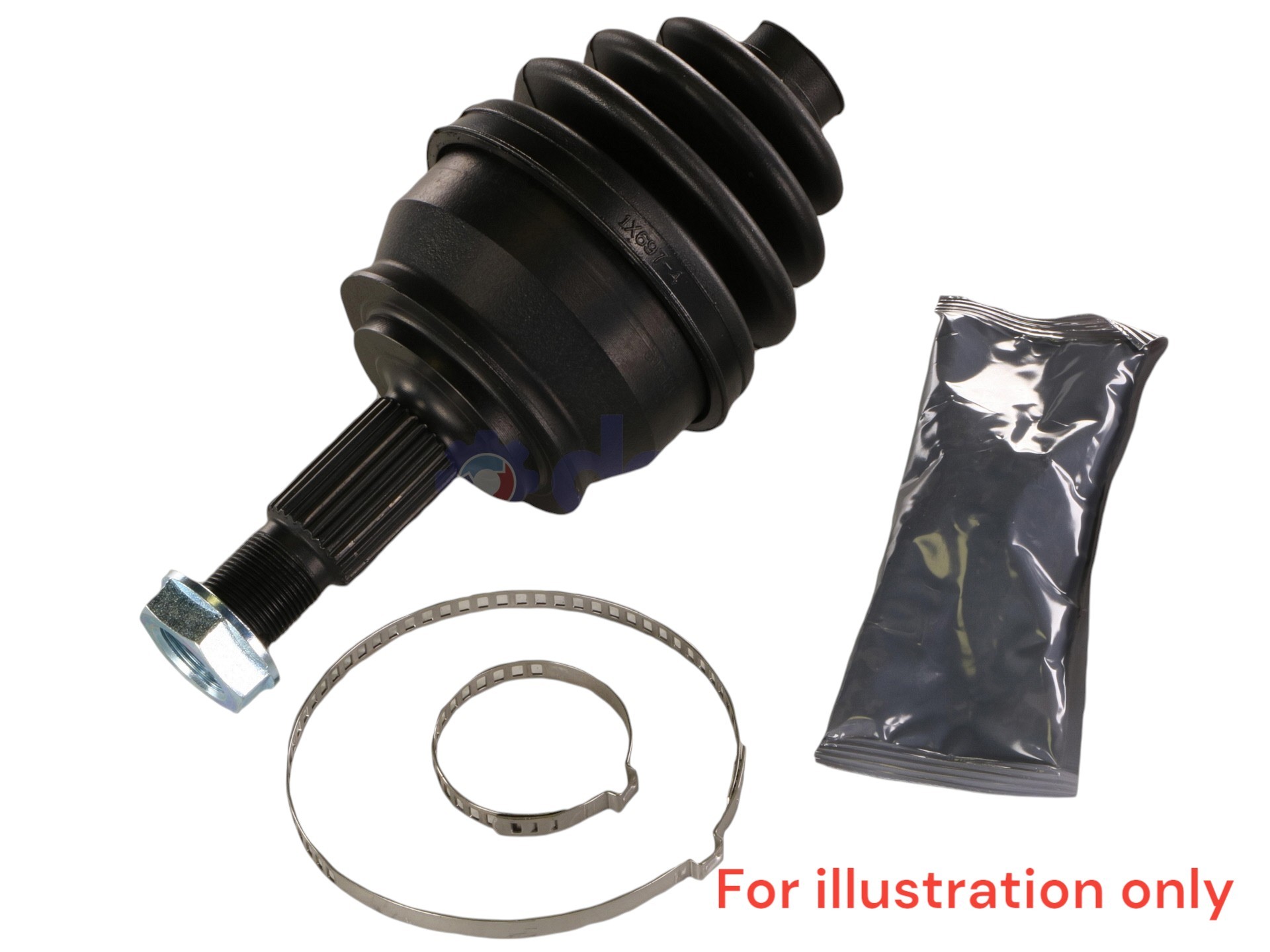

ALFA 159 D

Name: ALFA 159 D
Brand: Depa
SKU: 3293300
Price: 368.77 EUR
Availability: OutOfStock

Ref : 3293300

Matching vehicles :

159

Family :TR

ABS on the vehicle : Yes

Length of the shaft (including bearing unit) : 440 mm

COTE BOITE

Housing diameter : 73 mm

Outer spline diameter : 27 mm

Nombre de cannelures extérieures : 25

Length of the shaft (including bearing unit) : 440 mm

Seal seat diameter : 30 mm

Length of the gearbox output without seal seat : 52 mm

COTE ROUE

Shoulder diameter : 61 mm

Number of external splines : 30

Diamètre du bol : 94 mm

Diamètre des cannelures extérieures : 32.5 mm

Type and position (snap ring/circlip) : Centered snap ring

Number of splines on inner race : 26

Fixation	COTE ROUE	EC021
CV joint	COTE ROUE	JAL10
CV joint	COTE BOITE	PALCBMAL33DT
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6085
Bearing	COTE BOITE	RLT007
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

ALFA ROMEO : 50519320
