Catalog

Search by vehicle

Category :

Transmission

Return

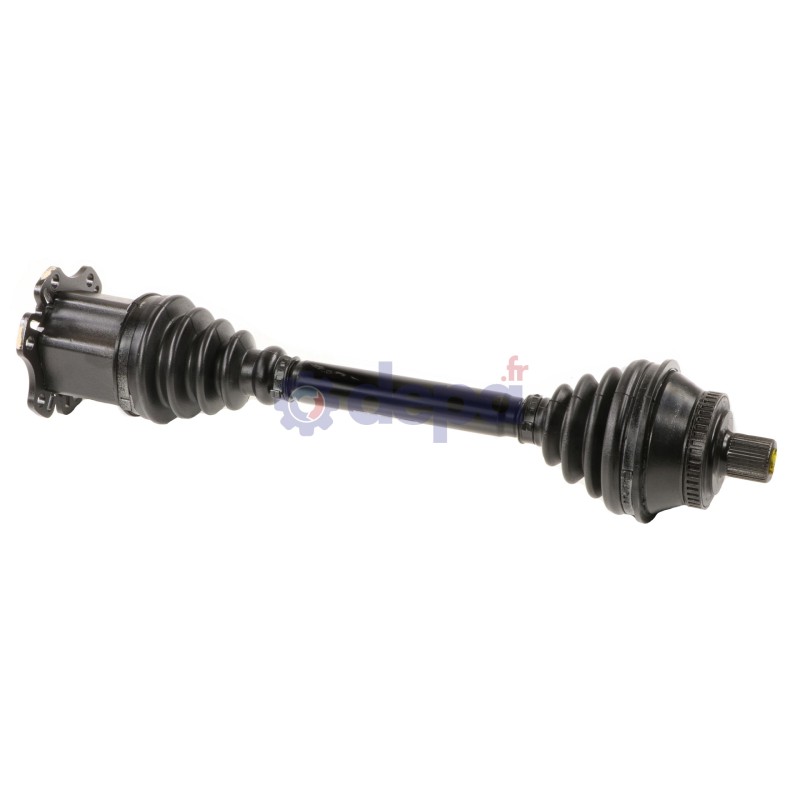

AUDI A4 II AUTOMATIC TRANSMISSION

Name: AUDI A4 II AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3322650
Price: 226.03 EUR
Availability: InStock

Ref : 3322650

Matching vehicles :

A4 II - - A4 B6 AVANT (8E5) - A4 B6 DÉCAPOTABLE (8H7)

Family :TR

Compressed length : 525 mm

ABS on the vehicle : Yes

Nut type : Washer

COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 22 mm

Bearing roller diameter : 43 mm

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 72 mm

Outer diameter (boot side) : 122 mm

Beads thickness : 9.5 mm

Height : 22 mm

Length : 116 mm

Number of splines : 34

Number of splines on inner race : 34

Number of mounting points : 6

Type of material : NITRILE

COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Outer spline diameter : 31 mm

Housing diameter : 98 mm

Shoulder diameter : 59 mm

Longueur : 90 mm

Number of external splines : 38

Nombre de cannelures sur la noix : 27

Number of grooves : 1

Type de matière : NÉOPRÈNE

Type and position (snap ring/circlip) : Internal snap ring

COURONNE ABS COTE ROUE

Outer diameter : 81 mm

Inner diameter : 77 mm

Width : 11 mm

Number of teeth : 45

Sealing kit	COTE ROUE	T3048

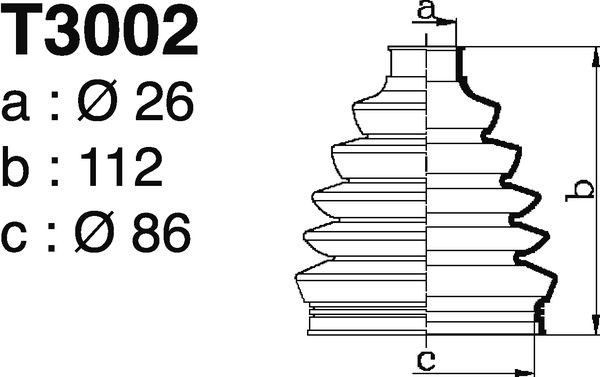

		T3002
		5026

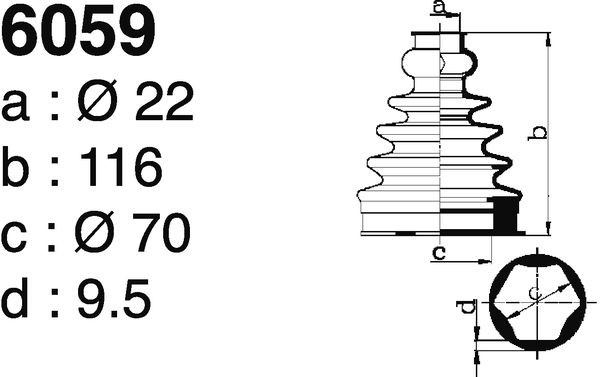

	COTE BOITE	6059
	COTE BOITE	6085
Fixation	COTE ROUE	VI003

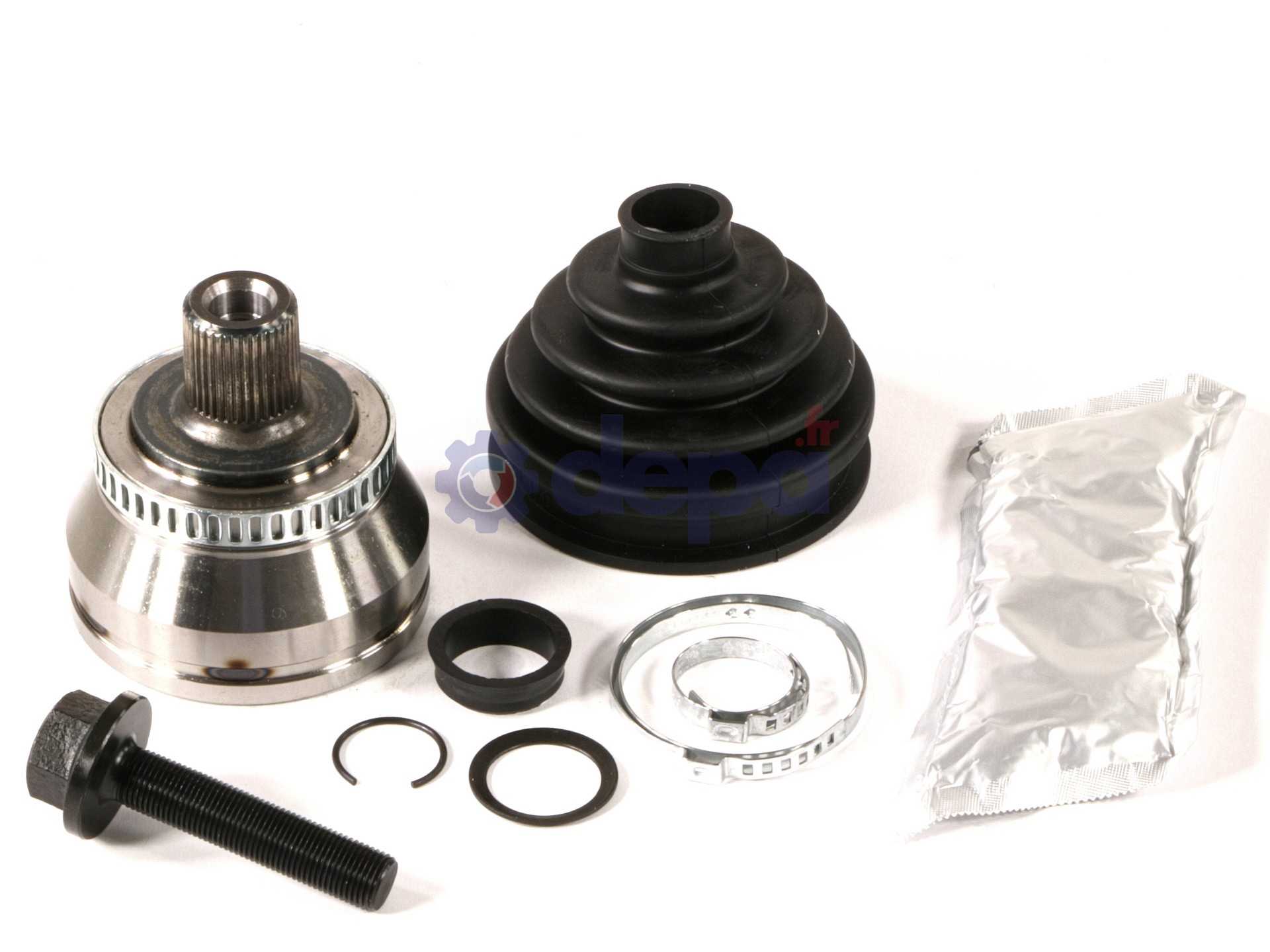

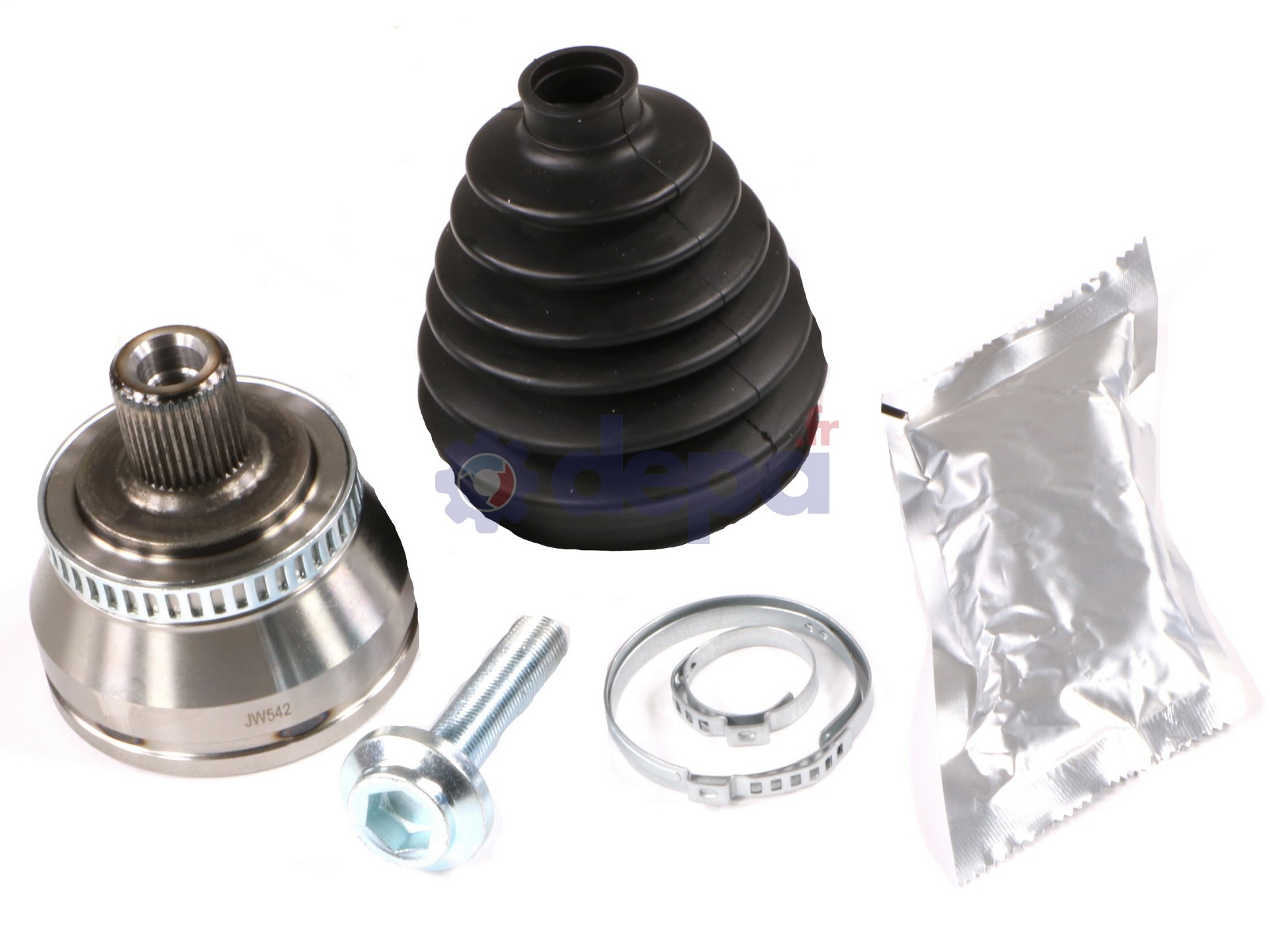

CV joint	COTE ROUE	JW542
CV joint	COTE ROUE	JW54
Tripod joint	COTE BOITE	TRIFO81
ABS ring		COU033

Equivalence to manufacturer references

AUDI : 8E0407271BK
AUDI : 8E0407271T
AUDI : 8E0407451HX
AUDI : 8E0407451SX
