Category :

Transmission

Return

Equivalence to manufacturer references

  • GENERAL MOTORS : 13468852

  • GENERAL MOTORS : 39040806

  • GENERAL MOTORS : 95520679

  • GENERAL MOTORS : 95524079

  • OPEL : 5374146

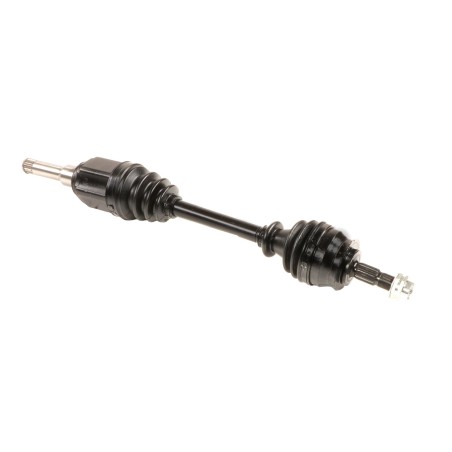

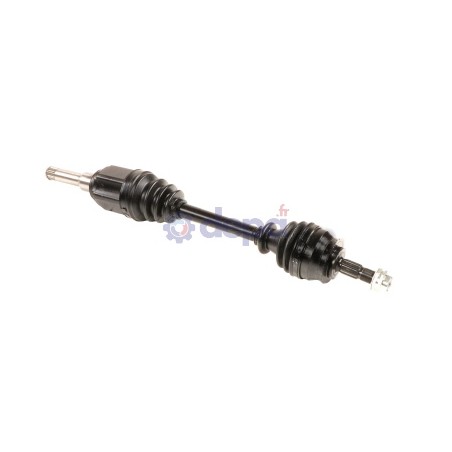

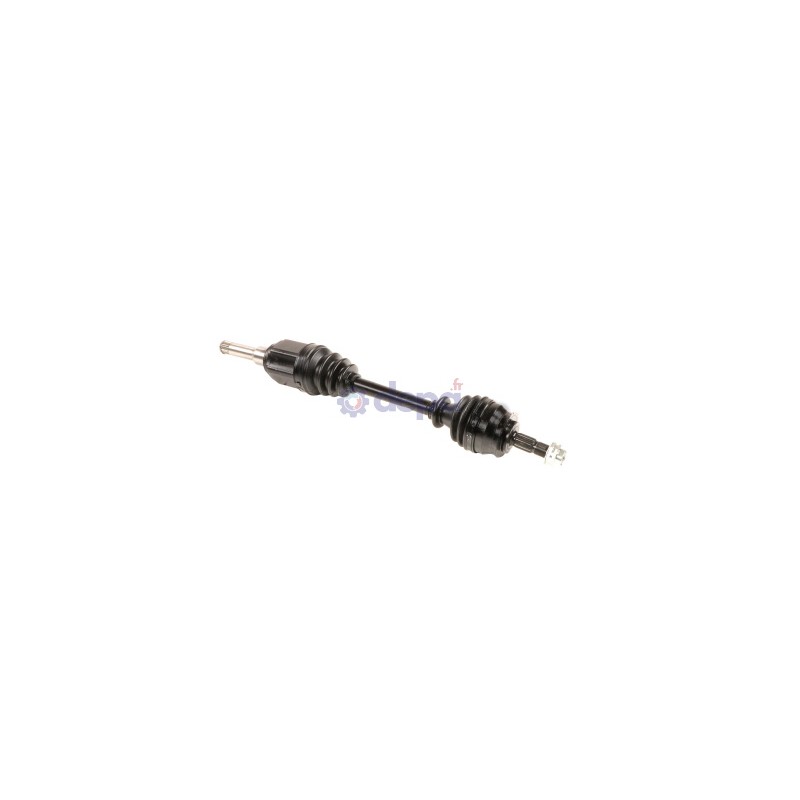

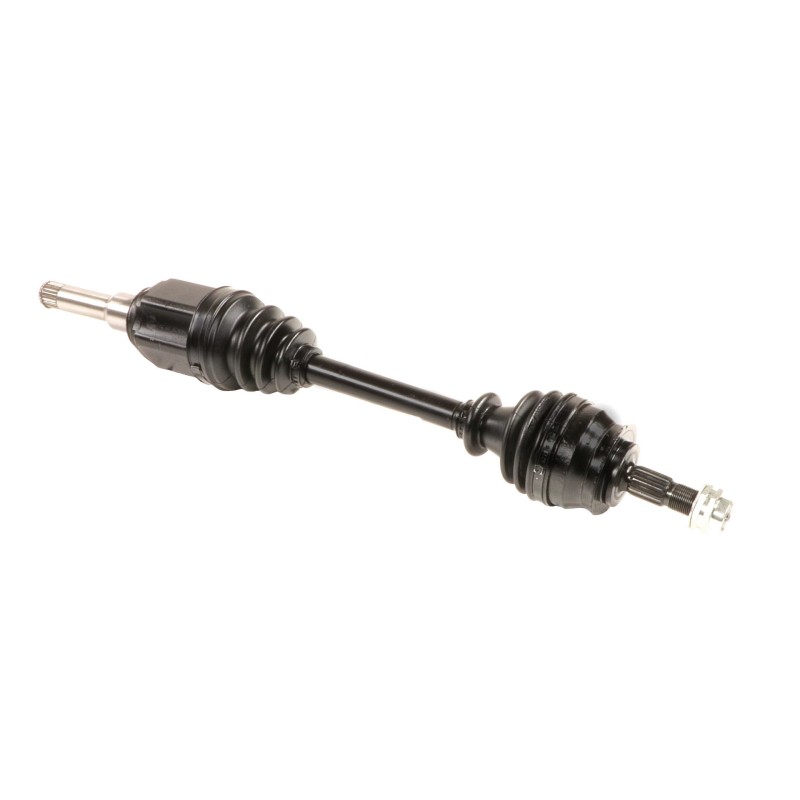

OPEL CORSA E AUTOMATIC TRANSMISSION

Ref : 3337470

Matching vehicles :

CORSA E

Family :TR

Height  : 25 mm

Compressed length  : 645 mm

ABS on the vehicle  : Yes

Thread pitch type  : 22X150

Nut type  : Washer

COTE BOITE

Diameter (big)  : 69 mm

Diameter (little)  : 23 mm

Seal seat diameter  : 35 mm

Outer spline diameter  : 24 mm

Housing diameter  : 68 mm

Beads thickness  : 11 mm

Length  : 85 mm

Length of the gearbox output without seal seat  : 80 mm

Number of external splines  : 22

Type of material  : Neoprene

COTE ROUE

Diamètre (grand)  : 80 mm

Diamètre (petit)  : 20 mm

Longueur  : 85 mm

Number of grooves  : 1

Type de matière  : NÉOPRÈNE

Fixation COTE ROUE EC050 ECROU 22 X 150
Sealing kit COTE ROUE 5017 PEUGEOT
COTE BOITE 6084 AUDI
CV joint COTE BOITE CBMO74GT
