Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

BMW : 31601226815

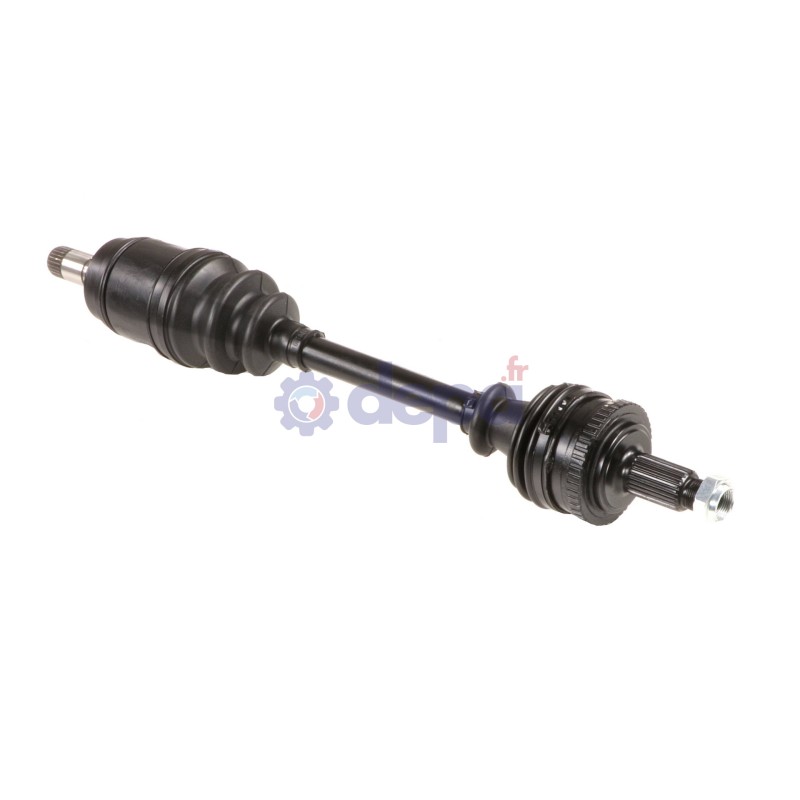

BMW 325 IX 4X4 ABS

Name: BMW 325 IX 4X4 ABS
Brand: Depa
SKU: 3344182
Price: 220.51 EUR
Availability: OutOfStock

Ref : 3344182

Matching vehicles :

SERIE 3 E30

Family :TR

Height : 17 mm

Compressed length : 600 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flange nut

COTE BOITE

Diameter (big) : 78 mm

Diameter (little) : 23 mm

Seal seat diameter : 35 mm

Outer spline diameter : 26 mm

Length : 110 mm

Number of external splines : 24

Number of grooves : 1

Type of material : Neoprene

COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Diamètre des cannelures extérieures : 29.5 mm

Housing diameter : 87 mm

Shoulder diameter : 54 mm

Longueur : 85 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 22

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

Type and position (snap ring/circlip) : External snap ring

Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	5016
Fixation	COTE ROUE	EC026
CV joint	COTE ROUE	JB4182
CV joint	COTE BOITE	CBMB4182G
