Catalog

Search by vehicle

Category :

Transmission

Return

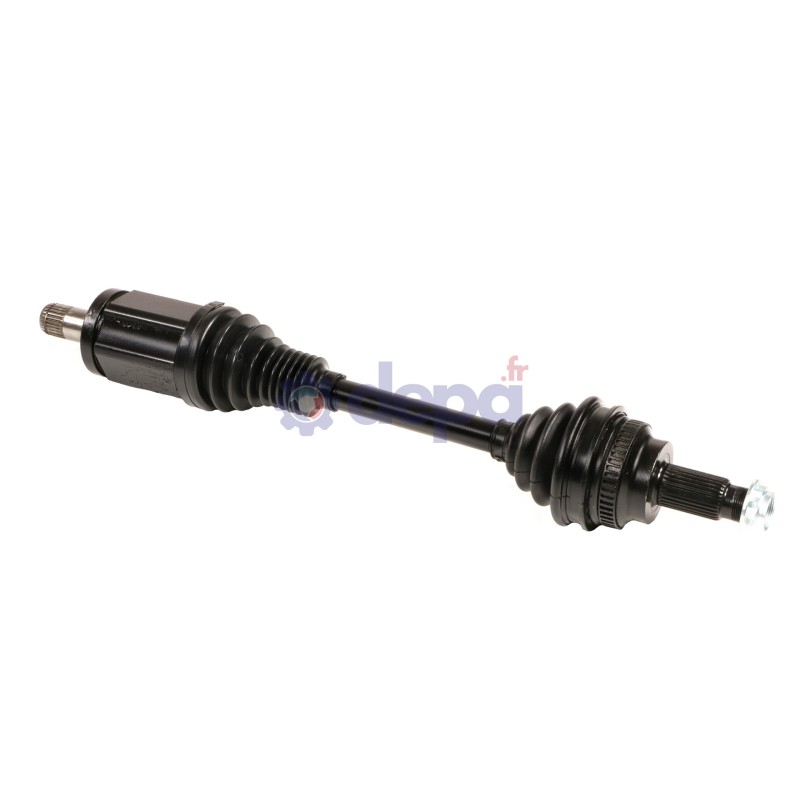

BMW AV G

Name: BMW AV G
Brand: Depa
SKU: 3346850
Price: 336.24 EUR
Availability: OutOfStock

Ref : 3346850

Matching vehicles :

SERIE 5 E60 - SERIE 5 E61

Family :TR

ABS on the vehicle : Yes

Compressed length : 600 mm

COTE ROUE

Type and position (snap ring/circlip) : Centered snap ring

Outer spline diameter : 33 mm

Nombre de cannelures sur la noix : 33

Observations : LG CAN 50 MM

Nombre de cannelures extérieures : 30

Diamètre du bol : 86 mm

Shoulder diameter : 65 mm

COTE BOITE

Diamètre des cannelures extérieures : 29.5 mm

Number of splines on inner race : 24

Housing diameter : 71 mm

Number of external splines : 27

Length of the gearbox output without seal seat : 52 mm

Seal seat diameter : 44 mm

Sealing kit	COTE ROUE	T3037
	COTE ROUE	5005
	COTE BOITE	T5016
	COTE BOITE	T5016
Fixation	COTE ROUE	EC048
CV joint	COTE ROUE	JB84
Tripod joint	COTE BOITE	TRIFO86
ABS ring		COU034

Equivalence to manufacturer references

BMW : 31607558951
BMW : 31607570273
BMW : 31607570275
