Catalog

Search by vehicle

Category :

Transmission

Return

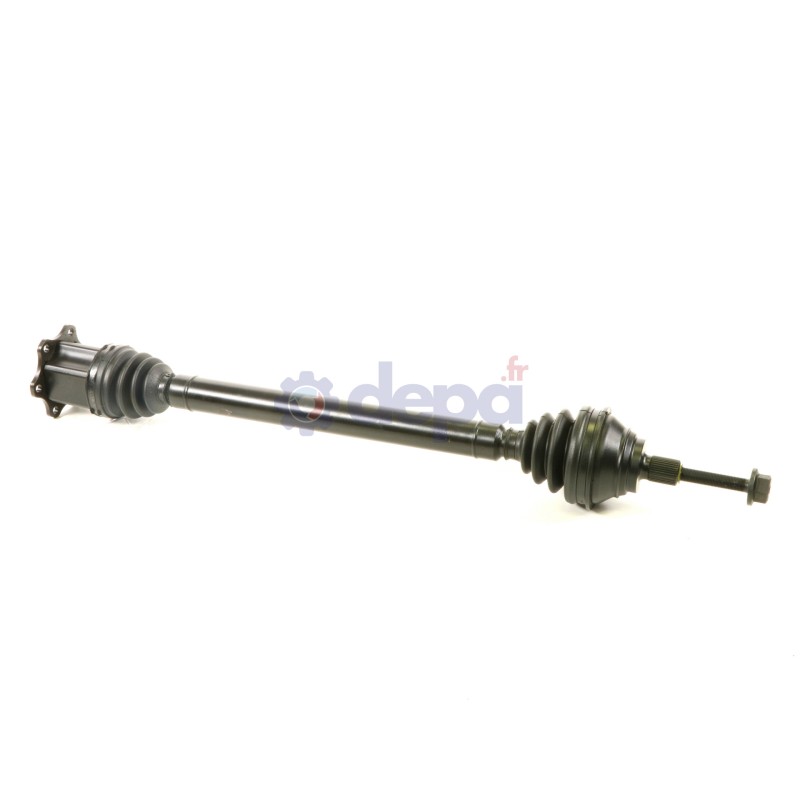

AUDI/SEAT/VOLKSWAGEN AUTOMATIC TRANSMISSION

Name: AUDI/SEAT/VOLKSWAGEN AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3370600
Price: 204.56 EUR
Availability: InStock

Ref : 3370600

Matching vehicles :

CADDY 4 - SIROCCO COUPE - A3 III - ALTEA XL

Family :TR

Compressed length : 761 mm

Observations : For PR 7MM

ABS on the vehicle : Yes

Nut type : Washer

COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Bearing roller diameter : 43 mm

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 72 mm

Outer diameter (boot side) : 119 mm

Beads thickness : 14 mm

Height : 22 mm

Length : 70 mm

Number of splines : 34

Number of mounting points : 6

Type of material : NITRILE

COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Outer spline diameter : 28.5 mm

Housing diameter : 98 mm

Shoulder diameter : 59 mm

Longueur : 90 mm

Number of external splines : 36

Number of splines on inner race : 27

Number of grooves : 1

Type de matière : NÉOPRÈNE

Type and position (snap ring/circlip) : Internal snap ring

Sealing kit	COTE ROUE	T3047
	COTE ROUE	5026
	COTE BOITE	6085
CV joint	COTE ROUE	JW011
	COTE ROUE	JW01
	COTE BOITE	CBEW06T
Fixation	COTE ROUE	VI003
Tripod joint	COTE BOITE	TRIFO81

Equivalence to manufacturer references

SEAT : 1K0407272QF
SEAT : 1K0407272RG
SEAT : 1K0407761QX
SEAT : 1K0407764BX
SEAT : 1K0407764EX
SEAT : 1K0407764PX
SKODA : 1K0407764BX
VOLKSWAGEN : 1K0407272ER
VOLKSWAGEN : 1K0407272HR
VOLKSWAGEN : 1K0407272JD
VOLKSWAGEN : 1K0407272JD
VOLKSWAGEN : 1K0407272QE
VOLKSWAGEN : 1K0407272TQ
VOLKSWAGEN : 1K0407454HX
VOLKSWAGEN : 1K0407762CX
VOLKSWAGEN : 1K0407762QX
VOLKSWAGEN : 1Q0407272B
VOLKSWAGEN : 1Q0407272BX
VOLKSWAGEN : 5Q0407272BT
VOLKSWAGEN : 5Q0407762AX
