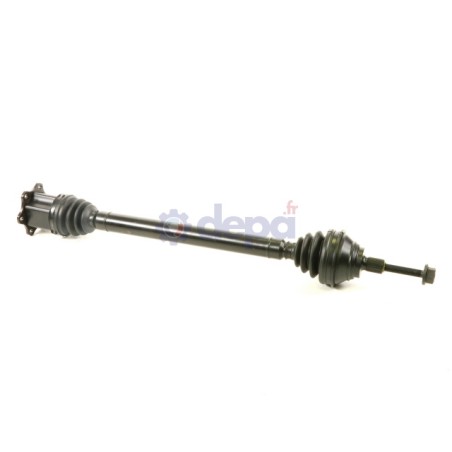

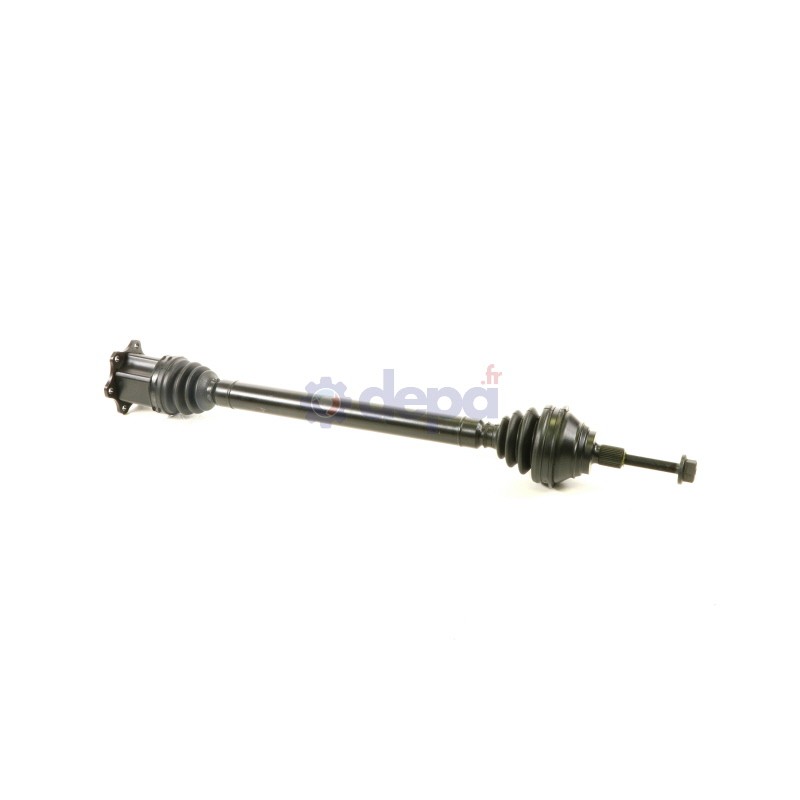

PASSAT V AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE

Name: PASSAT V AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE
Brand: Depa
SKU: 3370640
Price: 210.34 EUR
Availability: InStock

Ref : 3370640

Matching vehicles :

PASSAT 5 - SUPERB II - PASSAT 4

Family :TR

Compressed length : 560 mm

ABS on the vehicle : Yes

Nut type : Washer

COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Bearing roller diameter : 43 mm

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 72 mm

Outer diameter (boot side) : 119 mm

Beads thickness : 14 mm

Height : 22 mm

Length : 70 mm

Number of splines : 34

Number of mounting points : 6

Type of material : Neoprene

COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Outer spline diameter : 28.5 mm

Housing diameter : 98 mm

Shoulder diameter : 59 mm

Longueur : 90 mm

Number of external splines : 36

Number of splines on inner race : 27

Number of grooves : 1

Observations : 8 balls

Type de matière : NÉOPRÈNE

Type and position (snap ring/circlip) : Centered snap ring

Sealing kit	COTE ROUE	T3047
	COTE ROUE	5026
	COTE BOITE	6085
Fixation	COTE ROUE	VI003
CV joint	COTE ROUE	JW011
CV joint	COTE BOITE	CBEW06T
Tripod joint	COTE BOITE	TRIFO81

Equivalence to manufacturer references

SKODA : 3C0407272CA
VOLKSWAGEN : 3C0407272CA
VOLKSWAGEN : 3C0407272CB
VOLKSWAGEN : 3C0407452RX
VOLKSWAGEN : 3C0407452TX
