Category :

Transmission

Return

Equivalence to manufacturer references

  • HONDA : 44306S1AE61

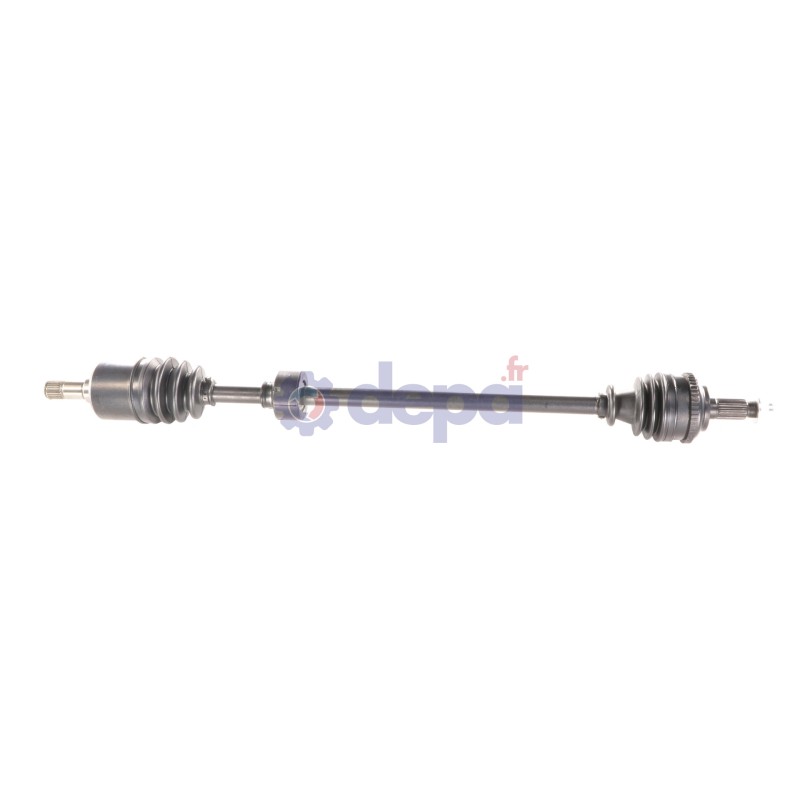

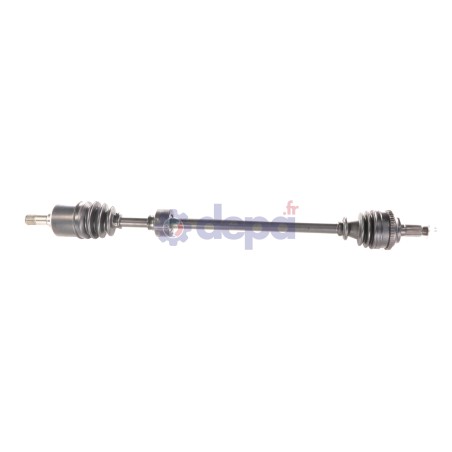

HONDA ACCORD WITH ABS LEFT-SIDE

Ref : 3380102

Matching vehicles :

ACCORD VI

Family :TR

Compressed length  : 925 mm

ABS on the vehicle  : Yes

COTE BOITE

Diameter (big)  : 65 mm

Diameter (little)  : 21 mm

Seal seat diameter  : 32 mm

Outer spline diameter  : 25.9 mm

Bearing roller diameter  : 34 mm

Housing diameter  : 70 mm

Beads thickness  : 15 mm

Height  : 26.5 mm

Length  : 86 mm

Length of the gearbox output without seal seat  : 61 mm

Number of splines  : 23

Number of external splines  : 25

Type of material  : Neoprene

COTE ROUE

Diamètre (grand)  : 80 mm

Diamètre (petit)  : 20 mm

Longueur  : 85 mm

Number of grooves  : 1

Type de matière  : NÉOPRÈNE

Sealing kit COTE ROUE 5017 PEUGEOT
COTE BOITE 6061 HYUNDAI
Tripod joint COTE BOITE TRIF55
CV joint COTE BOITE CBMH01G
Fixation EC020 ECROU 22X150 JUPE AV RONDELLE
ABS ring COU056
