Catalog

Search by vehicle

Category :

Transmission

Return

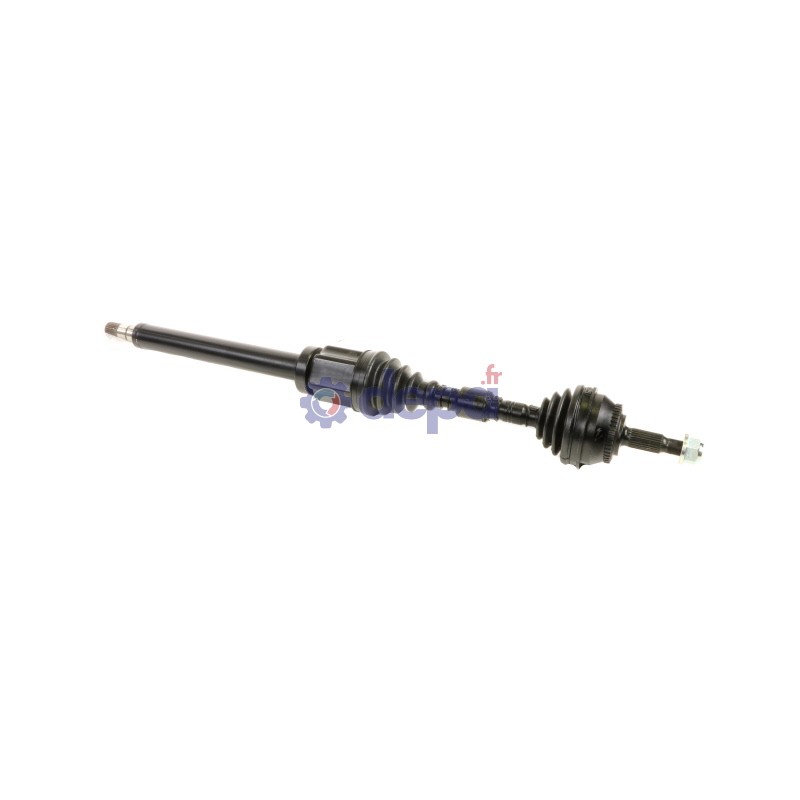

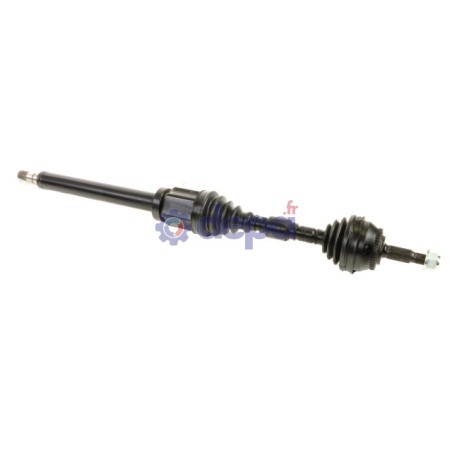

VOLVO V40 AUTO D

Name: VOLVO V40 AUTO D
Brand: Depa
SKU: 3406460
Price: 239.09 EUR
Availability: OutOfStock

Ref : 3406460

Matching vehicles :

S40 - V40

Family :TR

Compressed length : 645 mm

Length of the shaft (including bearing unit) : 415 mm

ABS on the vehicle : Yes

COTE ROUE

Shoulder diameter : 56 mm

Outer spline diameter : 26.5 mm

Number of external splines : 26

Number of splines on inner race : 27

Diamètre du bol : 98 mm

Type and position (snap ring/circlip) : Centered snap ring

COTE BOITE

Length of the shaft (including bearing unit) : 415 mm

Seal seat diameter : 31 mm

Housing diameter : 72 mm

Diamètre des cannelures extérieures : 26.5 mm

Nombre de cannelures extérieures : 26

Length of the gearbox output without seal seat : 48 mm

Fixation	COTE ROUE	EC019
Sealing kit	COTE ROUE	5026
Sealing kit	COTE BOITE	6059
CV joint	COTE ROUE	JV54
CV joint	COTE BOITE	PALCBMV6460DT
Tripod joint	COTE BOITE	TRIAL70
Bearing	COTE BOITE	RLT033
ABS ring		COU032

Equivalence to manufacturer references

VOLVO : 36050315
