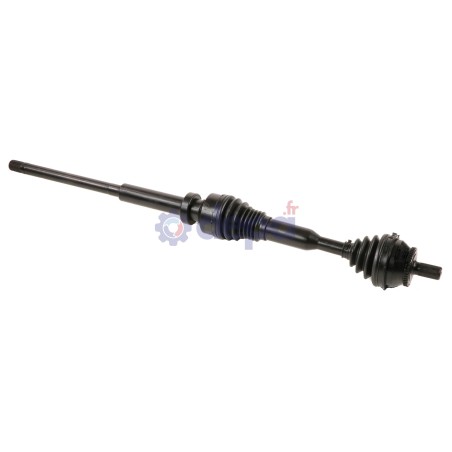

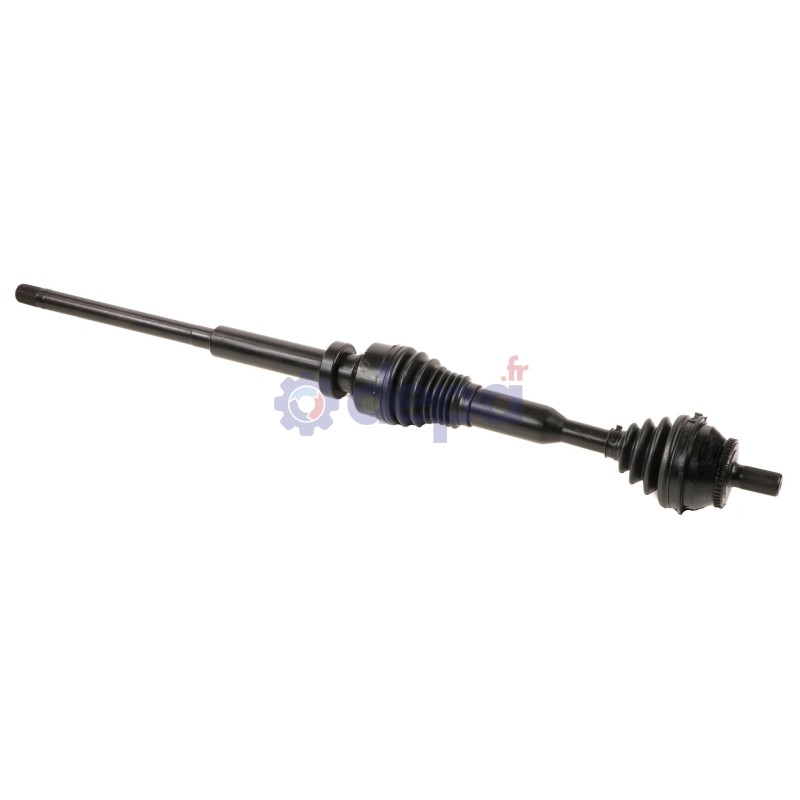

VOLVO XC90/XC90 II AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE

Name: VOLVO XC90/XC90 II AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE
Brand: Depa
SKU: 3407500
Price: 268.26 EUR
Availability: InStock

Ref : 3407500

Matching vehicles :

XC90 I

Family :TR

Compressed length : 1025 mm

Length of the shaft (including bearing unit) : 525 mm

ABS on the vehicle : Yes

Nut type : Washer

COTE BOITE

Seal seat diameter : 29.95 mm

Outer spline diameter : 28.5 mm

Housing diameter : 94 mm

Outer diameter : 75 mm

Inner diameter : 49 mm

Width : 19 mm

Length of the shaft (including bearing unit) : 525 mm

Length of the gearbox output without seal seat : 300 mm

Number of external splines : 28

COTE ROUE

Diameter (big) : 94 mm

Diameter (little) : 29 mm

Diamètre des cannelures extérieures : 26.5 mm

Diamètre du bol : 98 mm

Shoulder diameter : 56 mm

Length : 149 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 27

Number of grooves : 1

Observations : Please pay attention to the splines length

Type of material : Neoprene

Type and position (snap ring/circlip) : Centered snap ring

COURONNE ABS COTE ROUE

Diamètre extérieur : 81 mm

Diamètre intérieur : 72 mm

Width : 8 mm

Number of teeth : 48

Sealing kit	COTE ROUE	T3145
Sealing kit	COTE ROUE	5036
CV joint	COTE ROUE	JV70
Fixation	COTE ROUE	VI001
Bearing	COTE BOITE	RLT009
ABS ring		COU032

Equivalence to manufacturer references

VOLVO : 8603881
