Search by vehicle
Category :
Transmission

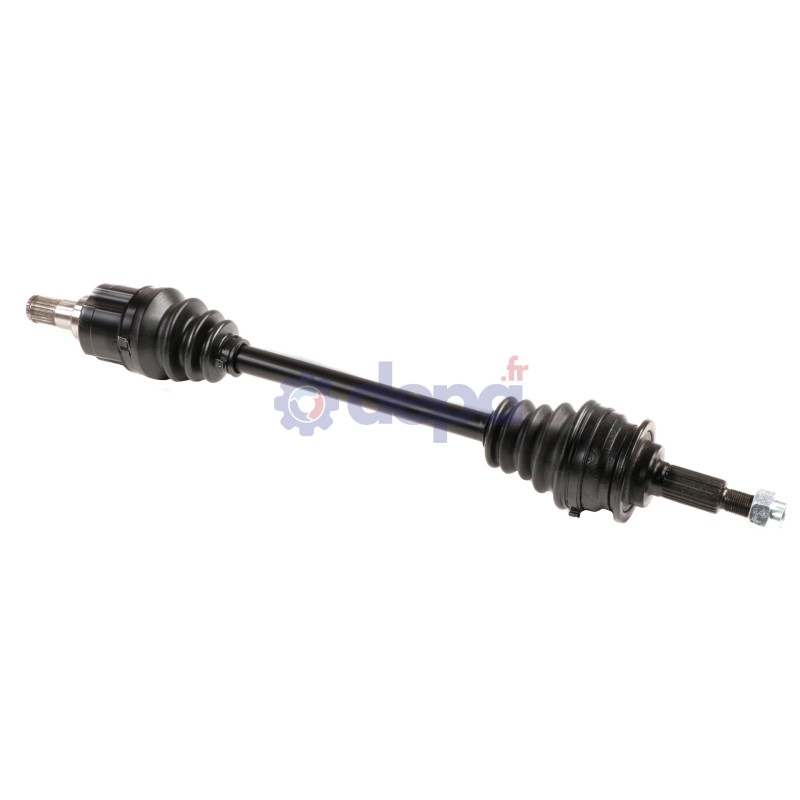

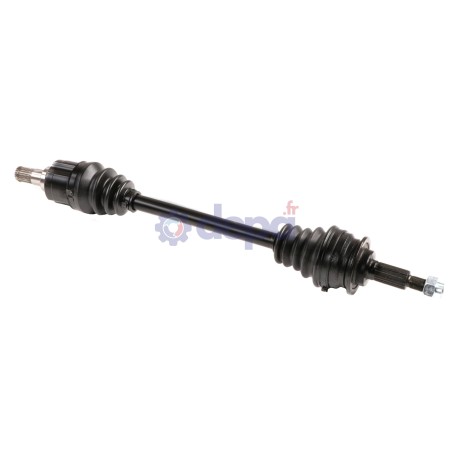

Ref : 3436270
Matching vehicles :
SWIFT IIIFamily :TR
Compressed length : 618 mm
COTE BOITE
Length of the gearbox output without seal seat : 54 mm
Housing diameter : 62 mm
Nombre de cannelures extérieures : 22
Outer spline diameter : 23.5 mm
Nombre de cannelures sur la noix : 28
Seal seat diameter : 25.5 mm
COTE ROUE
Number of external splines : 25
Type and position (snap ring/circlip) : Internal snap ring
Diamètre du bol : 74 mm
Number of splines on inner race : 28
Diamètre des cannelures extérieures : 26 mm
Shoulder diameter : 49 mm
Observations : LG FILETAGE 30 Ø 18 / LG CAN A EP 50
| Sealing kit | COTE ROUE | 5002 |
|
| COTE BOITE | 6192 |
|
|
| Fixation | COTE ROUE | EC017 |
|
| CV joint | COTE BOITE | CBMS6270T |
|
Equivalence to manufacturer references
SUZUKI : 44102-72K40-000
