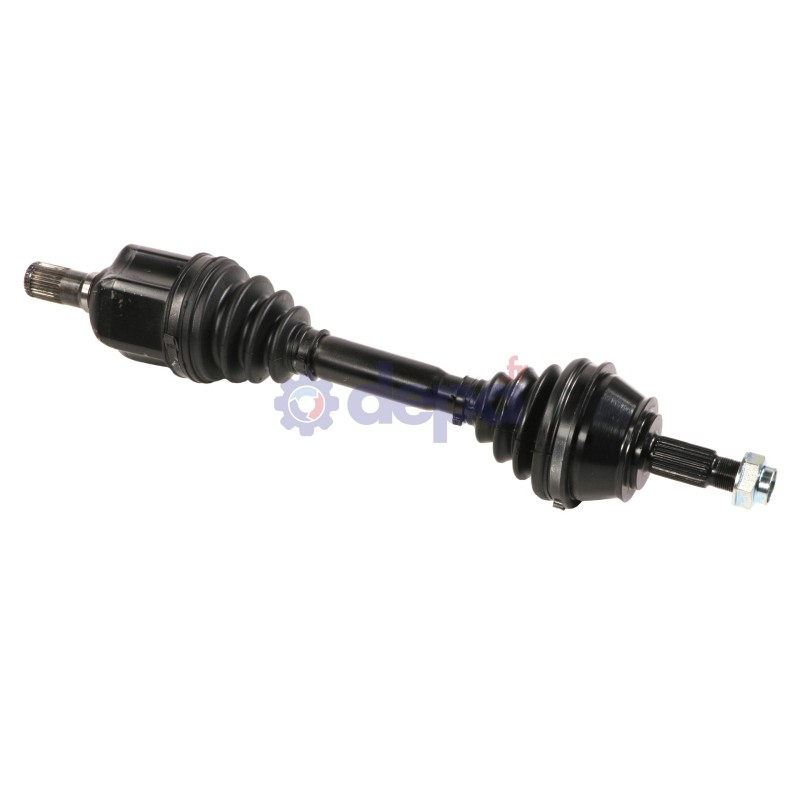

JEEP COMPASS II AUTOMATIC TRANSMISSION FRONT LEFT-SIDE

Name: JEEP COMPASS II AUTOMATIC TRANSMISSION FRONT LEFT-SIDE
Brand: Depa
SKU: 3471970
Price: 454.32 EUR
Availability: OutOfStock

Ref : 3471970

Matching vehicles :

COMPASS II

Family :TR

Height : 25 mm

Compressed length : 600 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Seal seat diameter : 35 mm

Outer spline diameter : 31 mm

Bearing roller diameter : 48.5 mm

Beads thickness : 12.5 mm

Height : 24 mm

Length : 96 mm

Length of the gearbox output without seal seat : 53 mm

Number of splines : 29

Number of external splines : 30

Type of material : Neoprene

COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 24 mm

Diamètre des cannelures extérieures : 29.5 mm

Housing diameter : 100.5 mm

Shoulder diameter : 58.6 mm

Longueur : 149 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 27

Number of grooves : 1

Type de matière : NÉOPRÈNE

Fixation	COTE ROUE	EC021
CV joint	COTE ROUE	JAL07
CV joint	COTE BOITE	CBMJE19GT
Sealing kit	COTE ROUE	5036
	COTE ROUE	5026
	COTE BOITE	6182
Tripod joint	COTE BOITE	TRIN97

Equivalence to manufacturer references

JEEP : 00K68290567AA
