Search by vehicle
Category :
Transmission

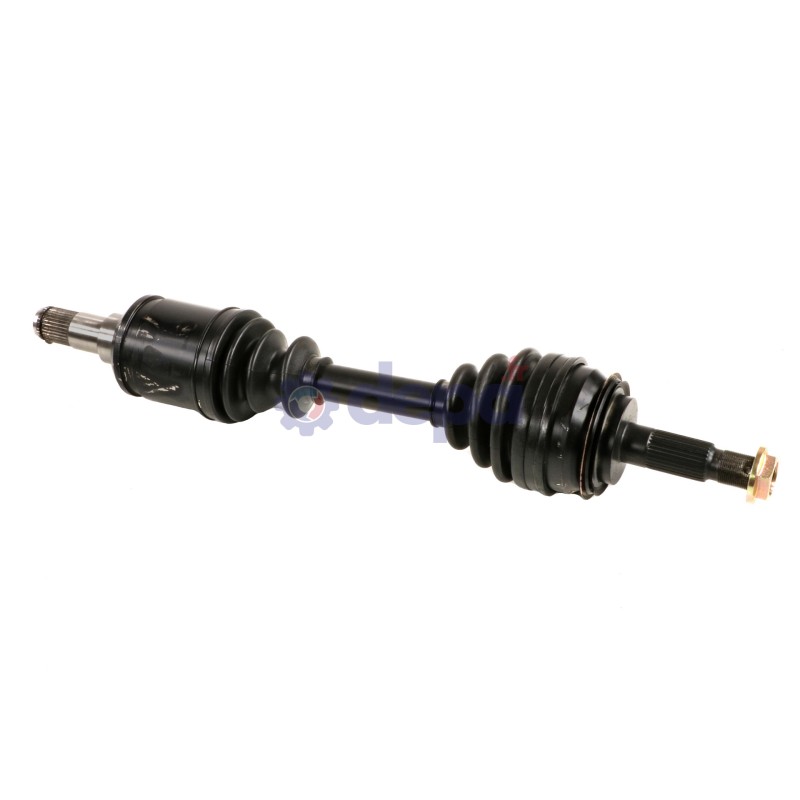

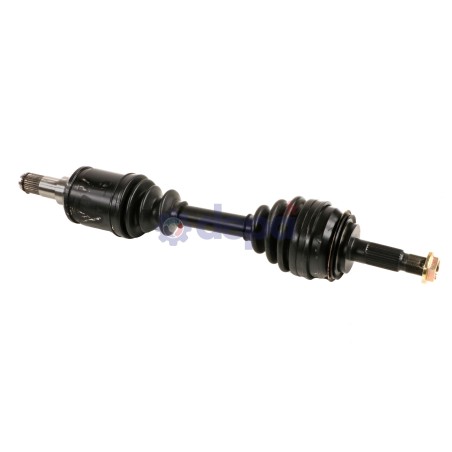

Ref : 3488050
Matching vehicles :
HILUX IVFamily :TR
Compressed length : 630 mm
ABS on the vehicle : No
COTE ROUE
Housing diameter : 110 mm
Nombre de cannelures extérieures : 30
Number of splines on inner race : 29
Diamètre des cannelures extérieures : 32 mm
Shoulder diameter : 72 mm
Type and position (snap ring/circlip) : Centered snap ring
COTE BOITE
Outer spline diameter : 33 mm
Number of external splines : 30
Length of the gearbox output without seal seat : 75 mm
Diamètre du bol : 95 mm
Seal seat diameter : 51 mm
| Sealing kit | COTE ROUE | 5020 |
|
| 5101 |
|
||
| 5036 |
|
||
| COTE BOITE | 6182 |
|
|

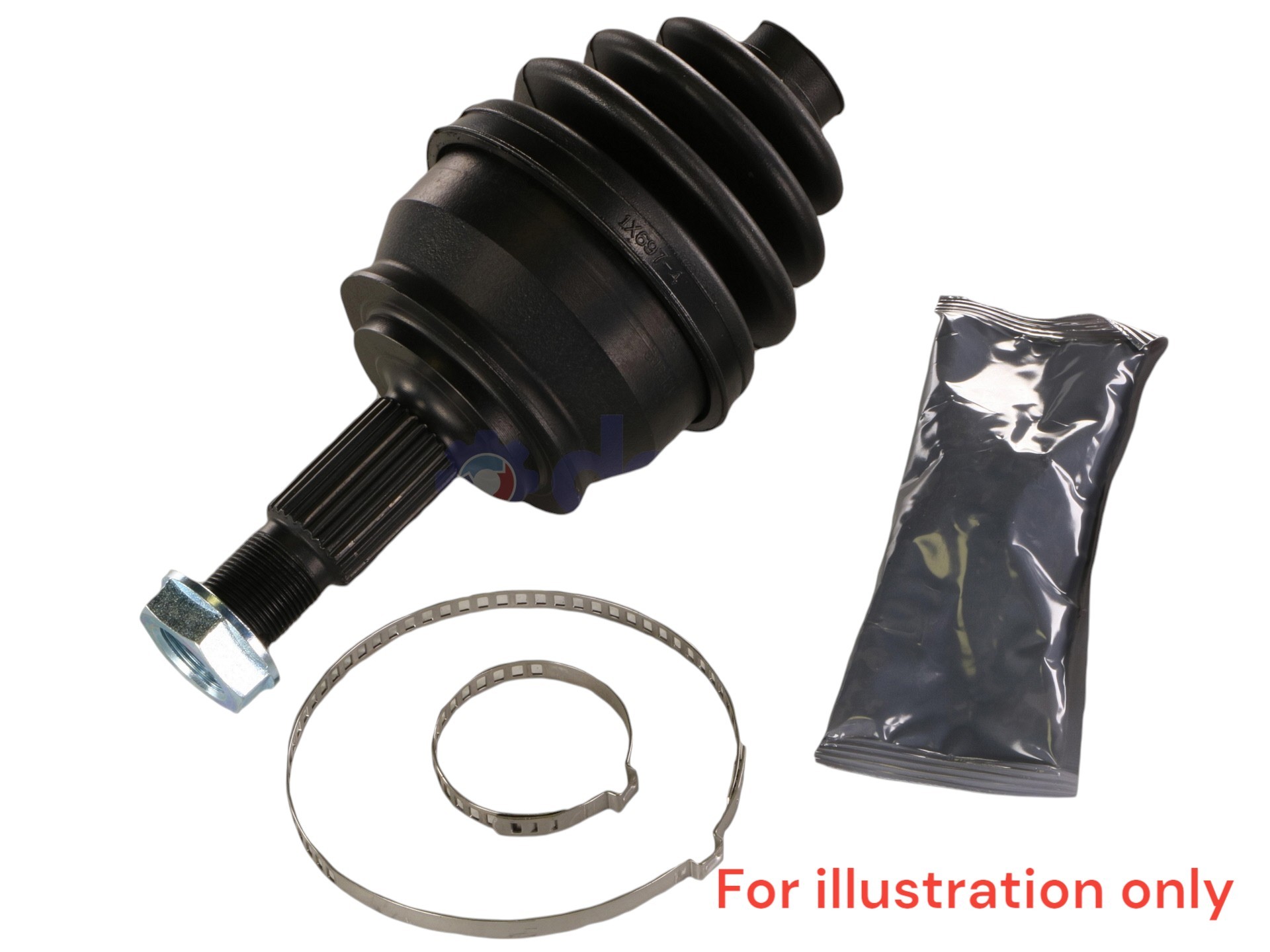

| CV joint | COTE ROUE | JT8050 |
|
| Tripod joint | COTE BOITE | TRIN97 |
|
Equivalence to manufacturer references
TOYOTA : 434300K020
TOYOTA : 434300K021
TOYOTA : 434300K022
TOYOTA : 434300K030
