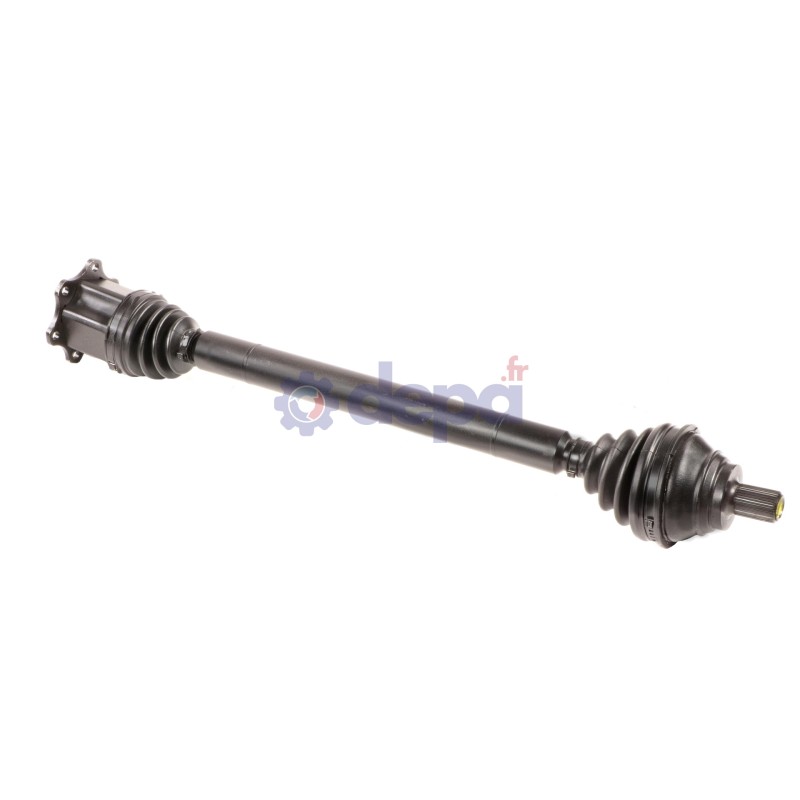

SEAT ALHAMBRA III TDI AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: SEAT ALHAMBRA III TDI AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3531200
Price: 207.92 EUR
Availability: InStock

Ref : 3531200

Matching vehicles :

SHARAN 2 - ALHAMBRA 3

Family :TR

Compressed length : 760 mm

ABS on the vehicle : Yes

Nut type : Washer

COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Bearing roller diameter : 43 mm

Mounting hole diameter : 10 mm

Outer diameter (boot side) : 119 mm

Beads thickness : 14 mm

Flange thickness : 6 mm

Height : 22 mm

Length : 70 mm

Number of splines : 26

Number of mounting points : 6

Type of material : NITRILE

COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Outer spline diameter : 28.5 mm

Housing diameter : 94 mm

Shoulder diameter : 59 mm

Longueur : 88 mm

Number of external splines : 36

Number of splines on inner race : 28

Number of grooves : 1

Observations : 8 balls

Type de matière : NÉOPRÈNE

Type and position (snap ring/circlip) : Internal snap ring

Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6085
Fixation	COTE ROUE	VI005
CV joint	COTE ROUE	JSE12
	COTE BOITE	CBEW06T
	COTE BOITE	CBEW061
Tripod joint	COTE BOITE	TRIFO81
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

SEAT : 7N0407764D
SEAT : 7N0407764R
SEAT : 7N0407764RX
